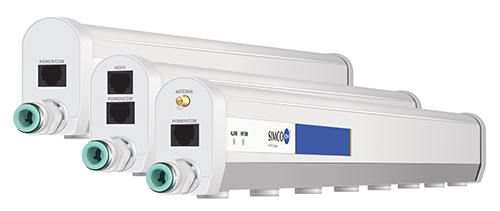

Simco-Ion’s latest Modulated Pulse (MP) Technology Ionization Bar is now available with Low Profile Titanium Emitter Nozzles. This enhances the performance and also reduces its overall height to 2.6” (65.3 mm) for space constraint applications. The 5640 MP bar is designed to provide industry-leading balanced ionization performance for advanced electronic assembly, flat panel display, semiconductor back-end advanced packaging and test applications, where tighter and precise ion balance with fast discharge time is required.
When installed with Novx System or Novx Inside, monitoring and feedback control, the 5640 can maintain precise balance better than ±5V. The bar can easily adjust and fine-tune voltage, frequency, and balance to meet environmental and product sensitivity requirements. Model 5640 MP bar is available in 14 lengths, from 350-2350 mm.
±5V with Novx System or Novx Inside version
Low swing voltages
Centralize power and control with widely adjustable MP Control software
Novx antenna input, FMS connection, alarms, power, and communications are located on the same end of the bar
For additional information on the AeroBar 5640 or other ionization solutions for static control and particle contamination control, contact Sales Services.
Please refer to all the applicable industry standards for comprehensive electrostatic charge management on our Industry Standards page.
Ultra-clean Ionization and Advance ESD-protection for Back-end, Semiconductor, Front-end Semiconductor, and General Electronic Assemblies
Semiconductor back-end manufacturing processes
Wafer probe Back grinding Wafer mount Wafer level
Die bonding Wire bonding Trim & Form
Dicing Testing Bumping
