Model 6842 | Overhead Ionizing Blower

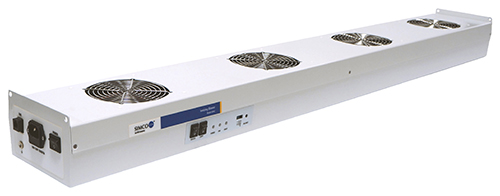

Model 6842 Overhead Ionizing Blower

   ​​​​​​



Sustainable Quality Overhead Ionizing Blower

Powered by Simco‑Ion, Technology Group’s Steady-state DC Technology, the Model 6842 Overhead Ionizing Blower with Heater delivers superior ion balance stability and rapid static charge decay across the entire work surface, ensuring consistent ESD protection over extended service periods.

Designed for minimal maintenance, it incorporates a built‑in auto‑emitter point cleaner that automatically services the emitter tips at power-on/off or at seven‑day intervals. With integrated task lighting and a heater function, the blower combines user‑friendly operation with enhanced comfort, while effectively safeguarding sensitive components from electrostatic damage.

  • Integrated heater and task lights
  • Auto emitter point cleaner
  • Steady-state DC Technology
  • ±10V or better balance
  • ISO 14644-1 Class 5 cleanliness at heater




For additional information on the Model 6842 Blower or other ionization solutions for static control and particle contamination control, contact Sales Services.

Specifications

Input Voltage 100-120 VAC or 200-240 VAC, 50-60 Hz
550W with heater ON and task lights ON
45W with heater OFF and task light ON
30W with heater OFF and task lights OFF
Discharge <2.5 sec @ 18” (45.7 cm) center of blower; 1000-100V fan high
Balance 0 ±10V @ 18” (45.7 cm) from blower face
Coverage 24”W x 48”L (61 x 122 cm) area
Ion Emission Steady-state DC Technology
Cleanroom Class ISO 14644-1 Class 5 with heater off
Dimension 3.46”H x 6.25”W x 24 / 36 / 48”L (88 x 159 x 610 / 914 / 1220 mm)
Weight 2-Fan: 6.9 lb (3.14 kg)
3-Fan: 9.5 lb (4.32 kg)
4-Fan: 12.25 lb (5.56 kg)
  • IEC power cord required
  • Optional Air Filter Kit per fan
  • Replacement Fuse 5A 250V Slow-Blow, Blower with 120V heater
  • Replacement Fuse 2.5A 250V Slow- Blow, Blower with 230V heater
  • Replacement Air Filter (6 pack)

Please refer to all the applicable industry standards for comprehensive electrostatic charge management on our Industry Standards page.

Target Markets

  • Electronics Assembly

Target Applications

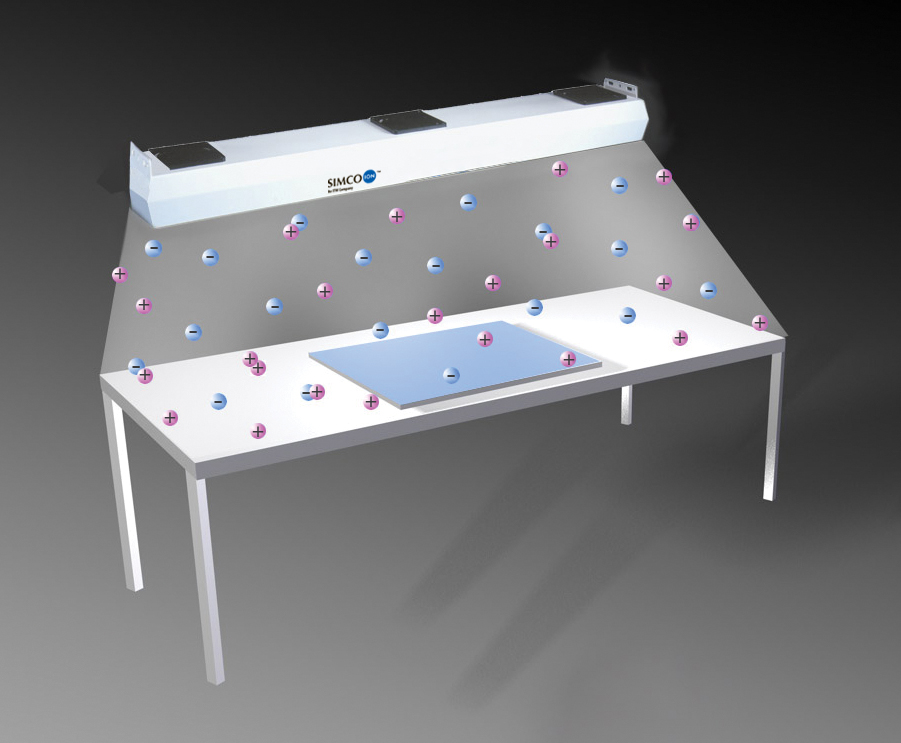

The Model 6842 controls static "overhead" by blowing ionizing air down on the product at a workstation to save workbench space.
